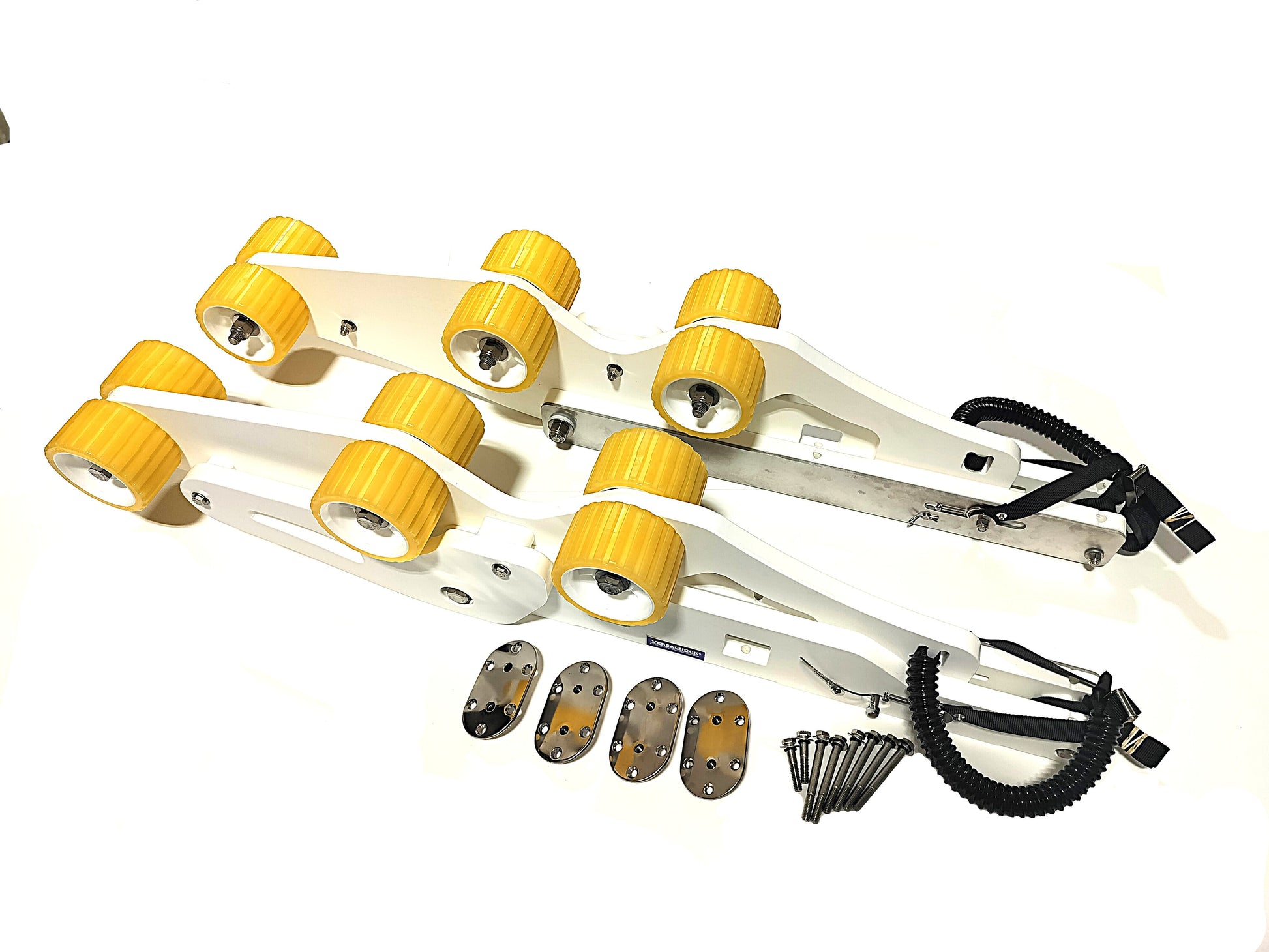

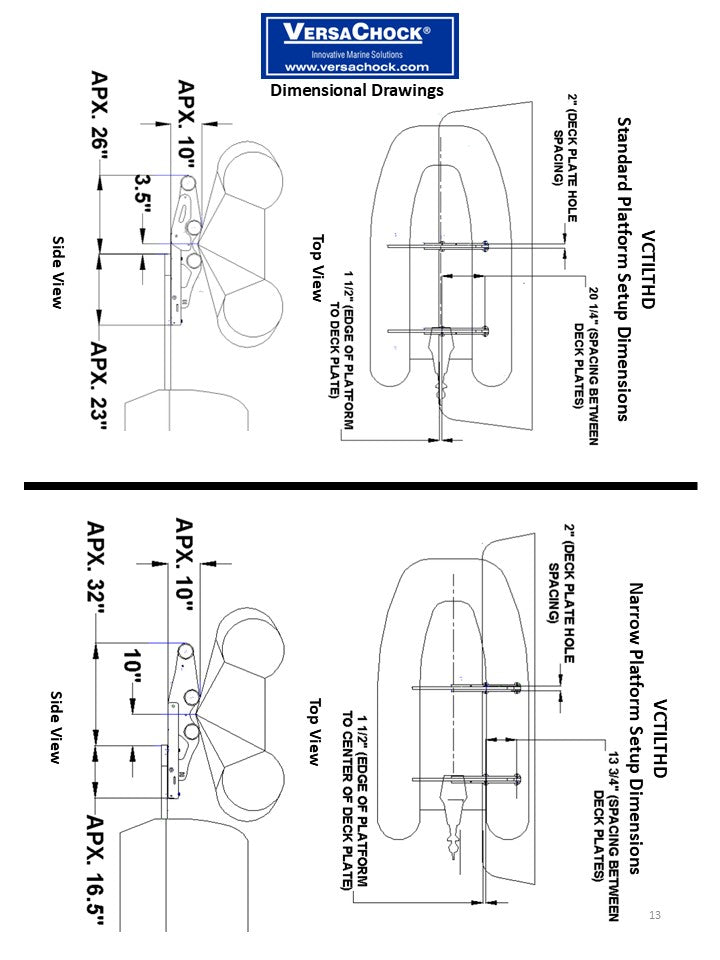

VersaChock's narrow platform heavy duty tilting dinghy davit chocks allow for easy loading of light to heavier weight dinghies onto narrower swim platforms. Aluminum plates are added to inner lower arms providing extra support. Davit chocks are removable by simply removing the included bolts from our super low-profile oval threaded deck plates. Davit arms have an automatic self-latching feature, which locks the arms when rotated down (safety hitch pins must also be installed for securing arms). Limit straps are also included to limit the angle of the arms while loading. Large 5" TPR (poly) wheels assist in loading and cradling water craft. Various winch options are offered separately. Also works great with VersaChock’s exclusive blind fastener system (VCBLINDWIDE25) when access to backside of mounting surface, or a second set of hands is not possible! 450 lbs (narrow platform mounting). Thirty two 1/4" oval head screws required for installation (not included). Dimensions (apx.) - 48" L x 5" W x 10" T.
